Case Study 2

Improving essential gene predictions in E. coli using intuitive single-gene deletion simulations

Step 1: Model selection

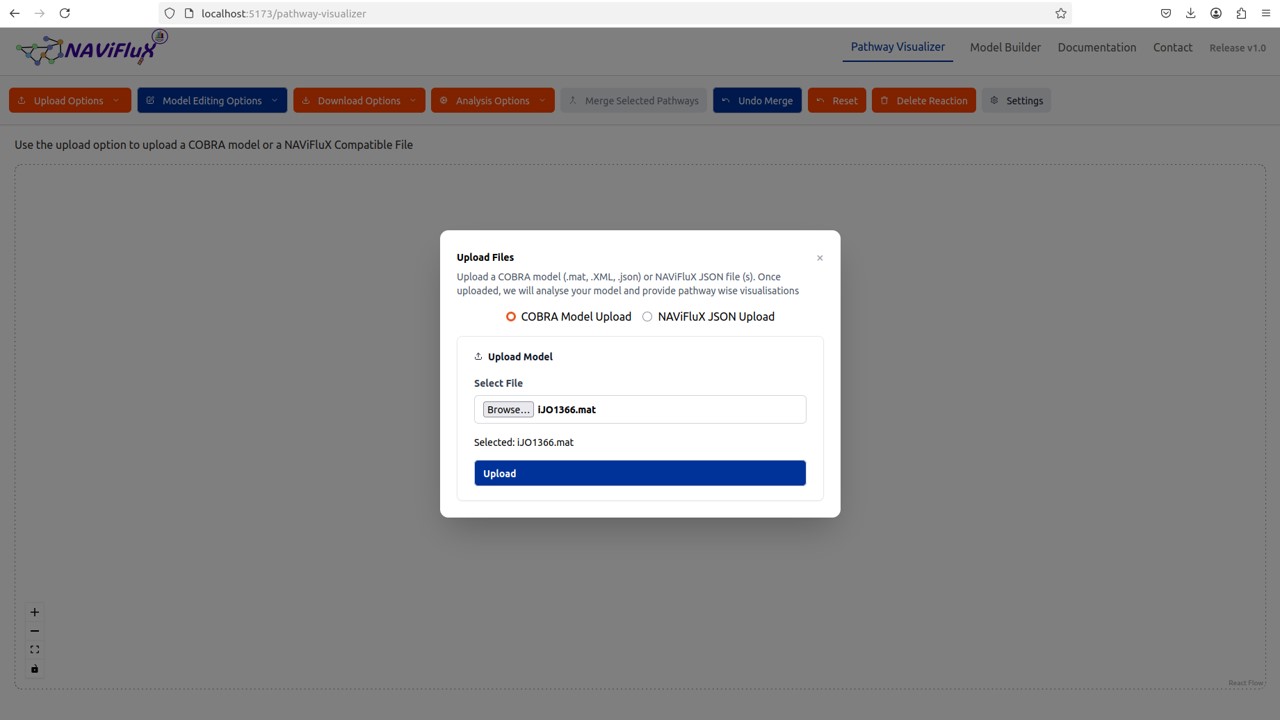

The genome-scale metabolic model iJO1366 of E. coli was selected for this study. The model in .mat format was downloaded from the BiGG database and uploaded through Upload Options in NAViFluX.

Step 2: Mapping gene essentiality to reactions

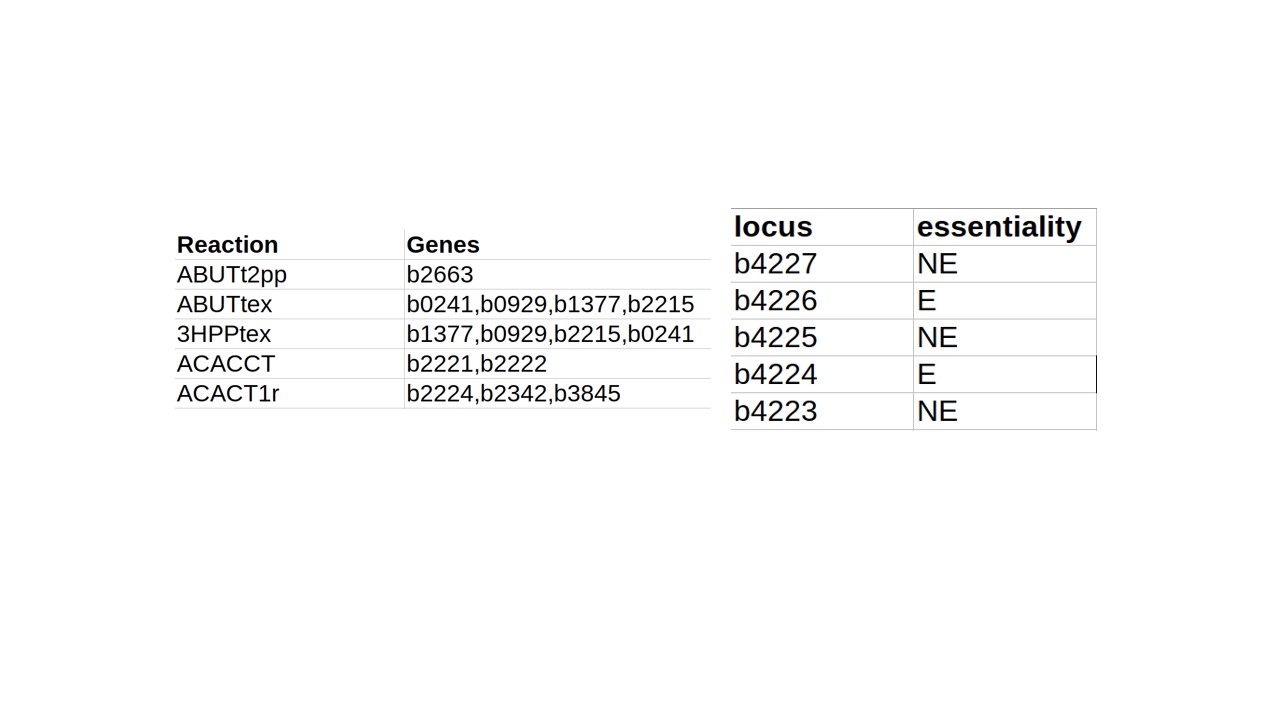

Genes from the KEIO library were mapped to their corresponding reactions in the iJO1366 model using gene-reaction associations. Reactions associated with essential and non-essential genes were separated for comparative analysis.

Step 3: Setting up the metabolic environment

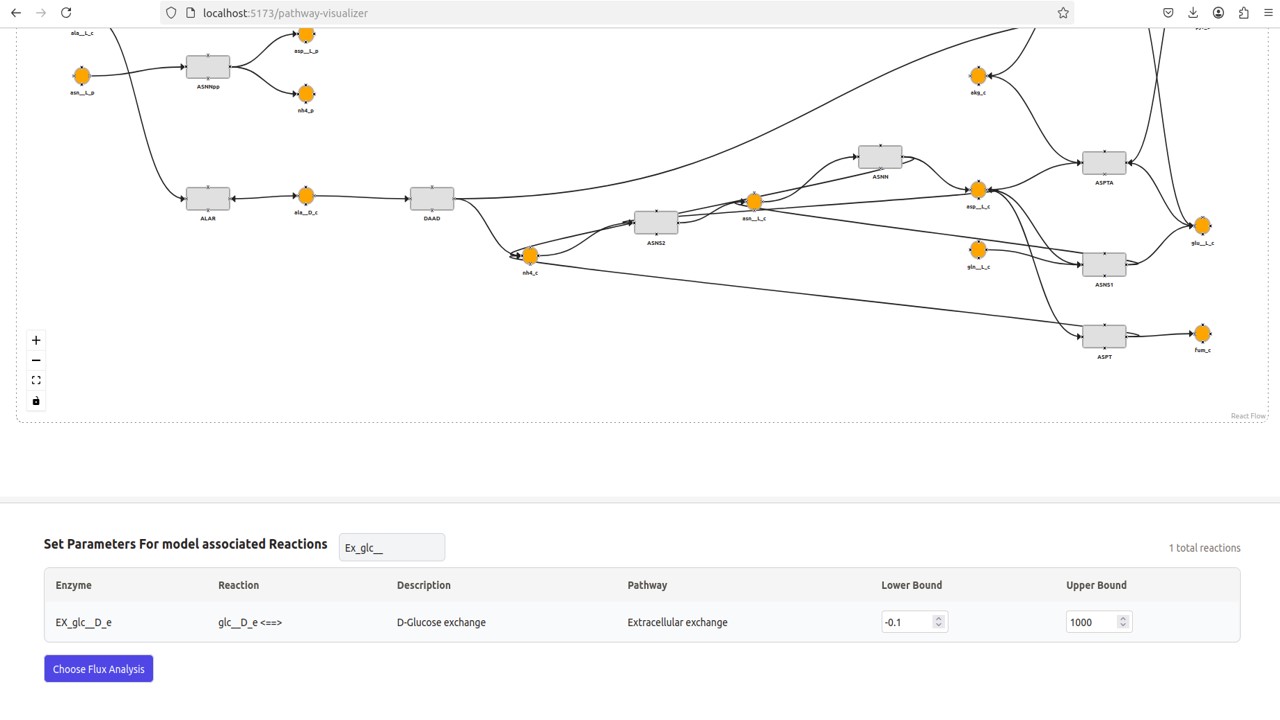

The iJO1366 model was constrained to simulate growth in MOPS minimal medium. Environmental constraints were applied using the same procedure described in Case Study 1.

Step 4: Cycle-free Flux Balance Analysis (cFBA)

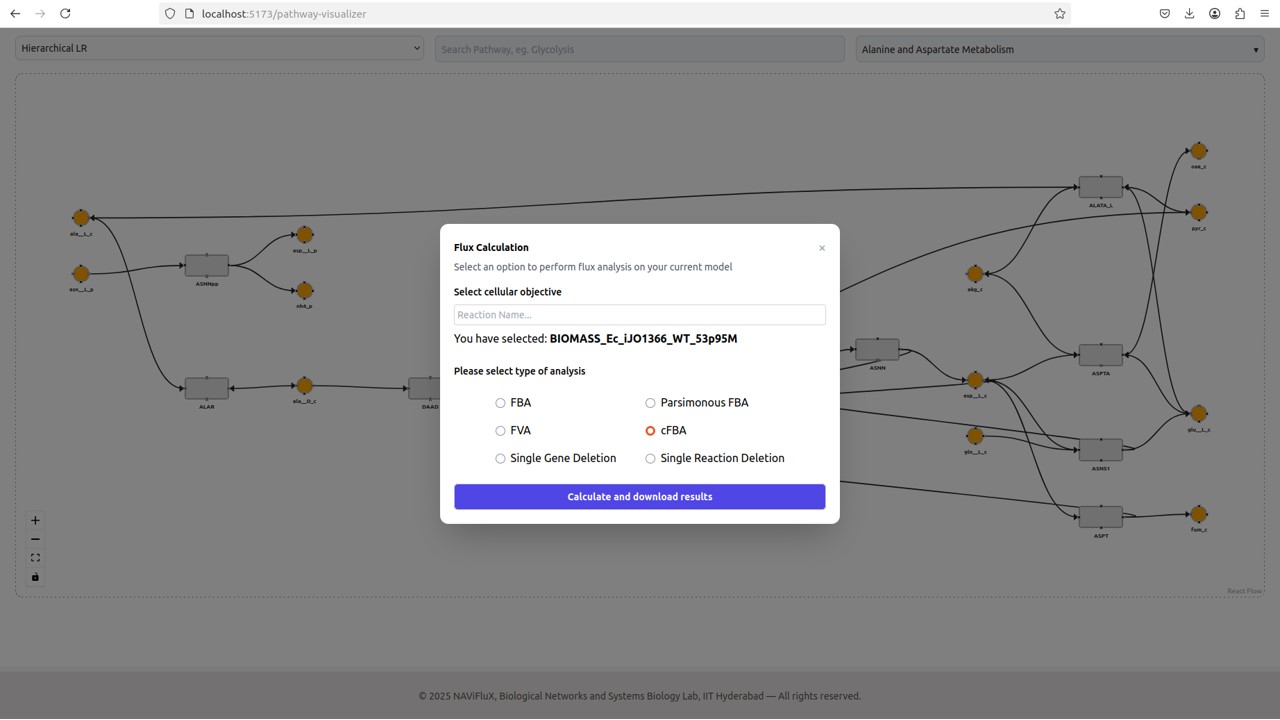

Cycle-free flux balance analysis (cFBA) was performed using the Flux Analysis module in NAViFluX.

Flux magnitudes of reactions associated with essential and non-essential genes were compared. Non-essential reactions exhibited larger flux magnitudes, whereas essential reactions carried lower but indispensable fluxes.

Step 5: Single-gene deletion simulation and model evaluation

Single-gene knockout simulations were performed in NAViFluX, available in "Flux Analyses" module. Predicted growth rates were compared against KEIO essentiality annotations.

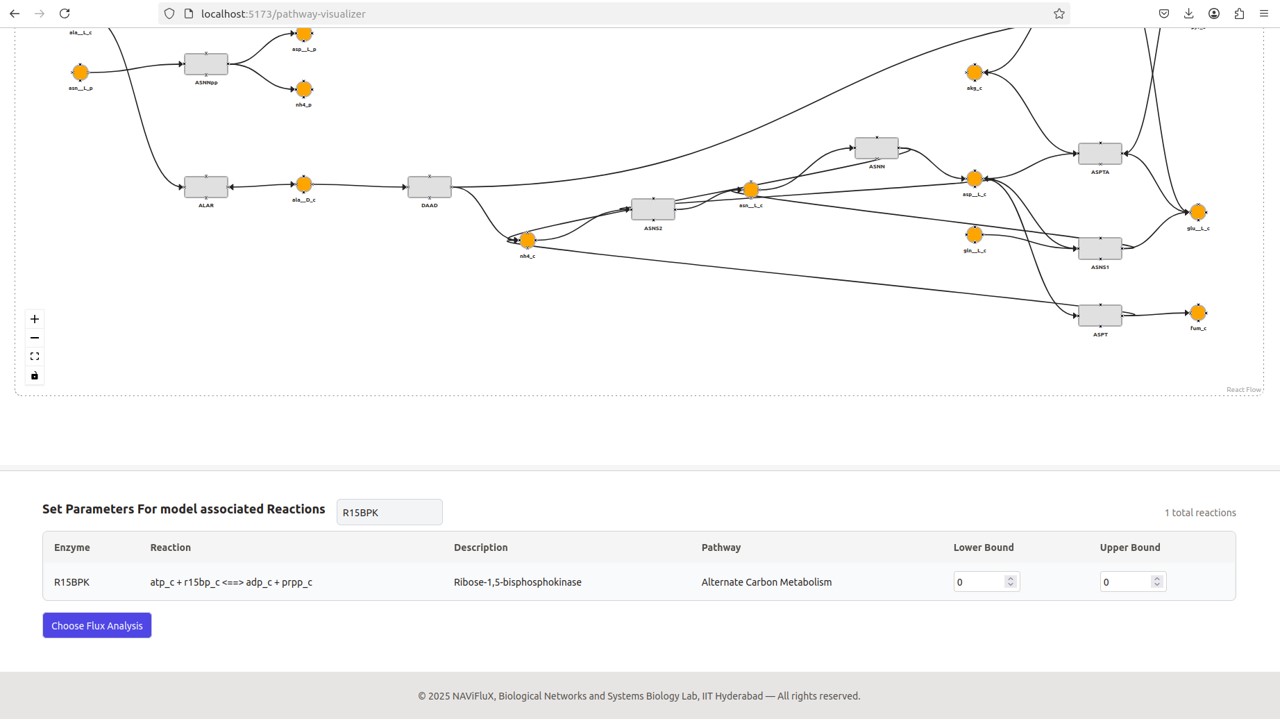

Step 6: Investigating incorrect predictions (PRPPS case) Phosphoribosyl pyrophosphate synthetase (PRPPS) is experimentally essential for biomass synthesis. However, the default iJO1366 model predicted PRPPS to be non-essential. Exploration in NAViFluX revealed an alternative prpp synthesis route via Ribose-1,5-bisphosphokinase (R15BPK). The R15BPK reaction was constrained to 0 mmol/(gDW·hr) to eliminate the alternative prpp synthesis route. This forced biomass production to depend on PRPPS.

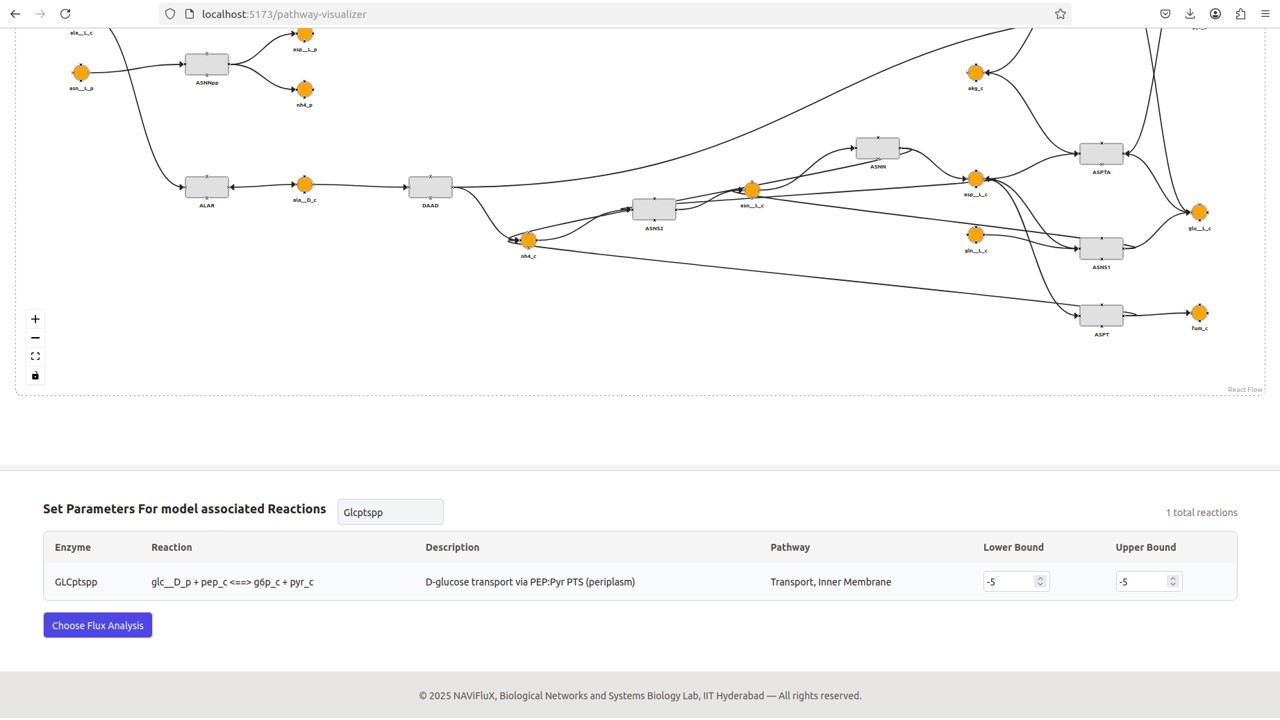

Similarly, glucose uptake via GLCptspp was partially constrained to maintain activity of HEX1, preserving realistic glucose catabolism.

After applying minimal internal constraint revisions, gene essentiality predictions were recomputed. The model performance improved slightly to an auROC of 0.76.

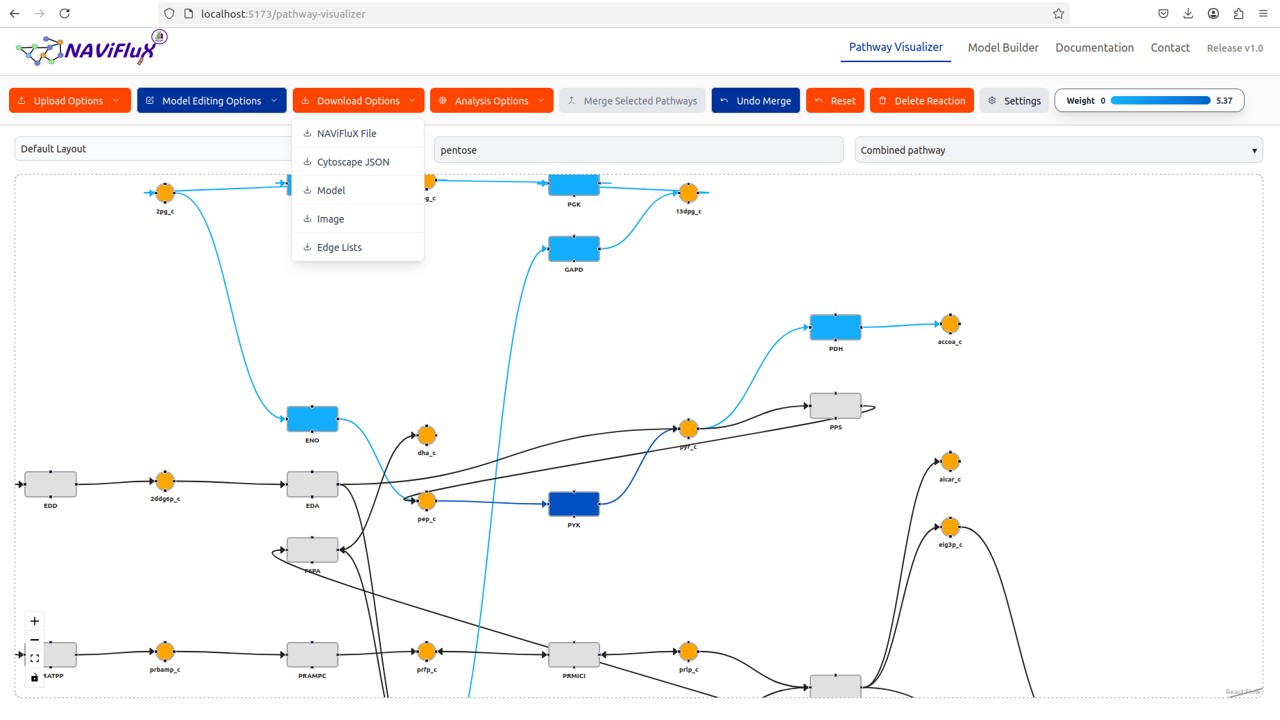

Step 7: Constructing the prpp synthesis sub network.

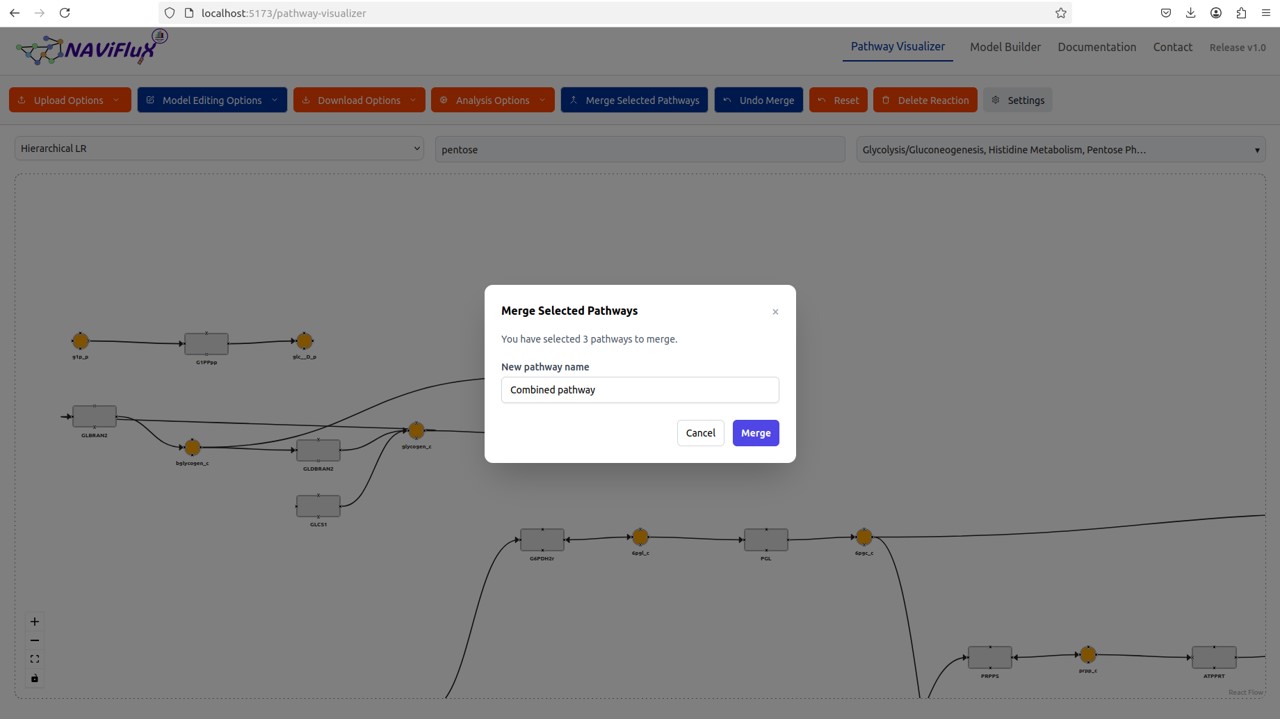

To mechanistically study prpp synthesis, three subsystems were merged: Glycolysis, Pentose phosphate pathway, Histidine metabolism

The resulting merged sub network represented net glucose catabolism towards prpp synthesis. Cycle-free FBA was performed in the wild-type model using NAViFluX "Flux Analyses" module. Flux overlay showed that RPI-mediated oxidative PPP was the preferred route for prpp synthesis. This visualization was stored in NAViFluX’s native JSON format.

Step 8: Single knockout of RPI

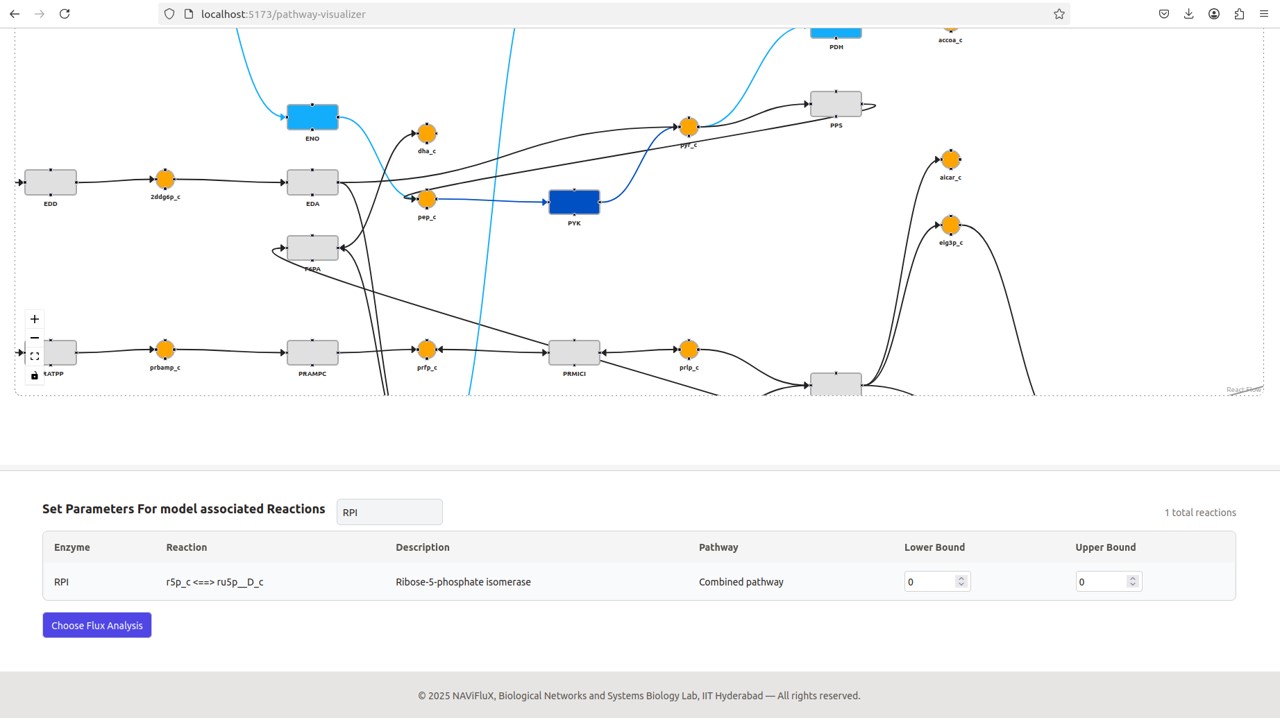

The RPI reaction was knocked out by fixing its flux bounds to zero.

Following the knockout, prpp synthesis was rerouted entirely through the non-oxidative PPP, driven by TKT1 activity.

Step 9: Double knockout of RPI and TKT1

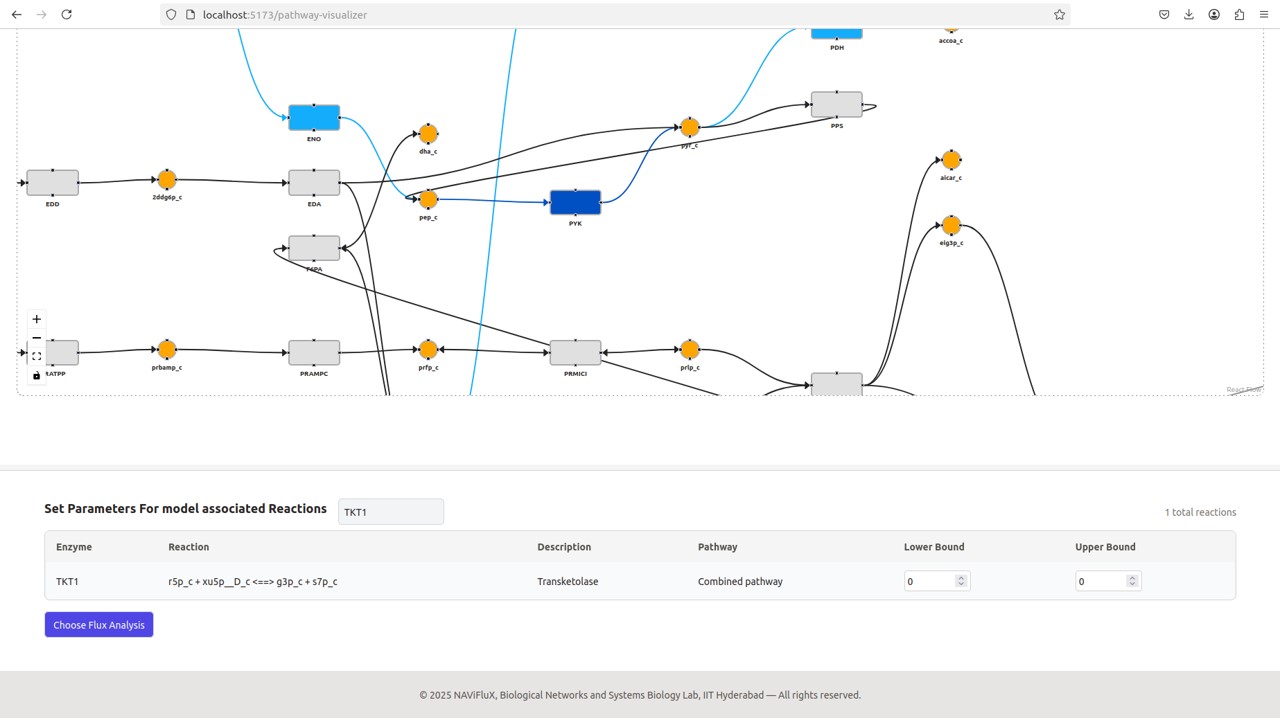

A double knockout was simulated by constraining both RPI and TKT1 reactions to zero. This eliminated both oxidative and non-oxidative PPP routes.

The double knockout confirmed that RPI and TKT1 form a synthetic essential pair for prpp-dependent biomass synthesis.
